Case Study: TNC Automation Tool

The TNC Automation Tool is an internal web application designed to streamline the creation and management of Terms and Conditions (T&C) pages. It enables non-technical users—specifically marketing teams—to generate, edit, and export fully formatted HTML documents without writing code.

I developed this as a full-stack solution using JavaScript and Tailwind CSS, integrating a WYSIWYG editor to bridge the gap between content creation and frontend implementation.

Problem

The existing workflow for creating and updating T&C pages was inefficient, repetitive, and heavily dependent on the frontend team.

Marketing teams across multiple regions would:

  • Draft T&C content in Microsoft Word (both English and localized versions)
  • Submit the document to the frontend/design team
  • Wait for conversion into HTML
  • Review in a test environment
  • Request revisions if needed, repeating the cycle

This process:

  • Took 1–2 hours per request
  • Created unnecessary back-and-forth between teams
  • Introduced risks of formatting inconsistencies and code errors
  • Prevented marketing teams from having direct control over their own content

Solution

I built a self-service internal tool that allows marketing teams to independently create and manage T&C pages.

At the core of the solution is a WYSIWYG editor powered by TinyMCE, enhanced with custom functionality tailored to the team's workflow.

Key Features:

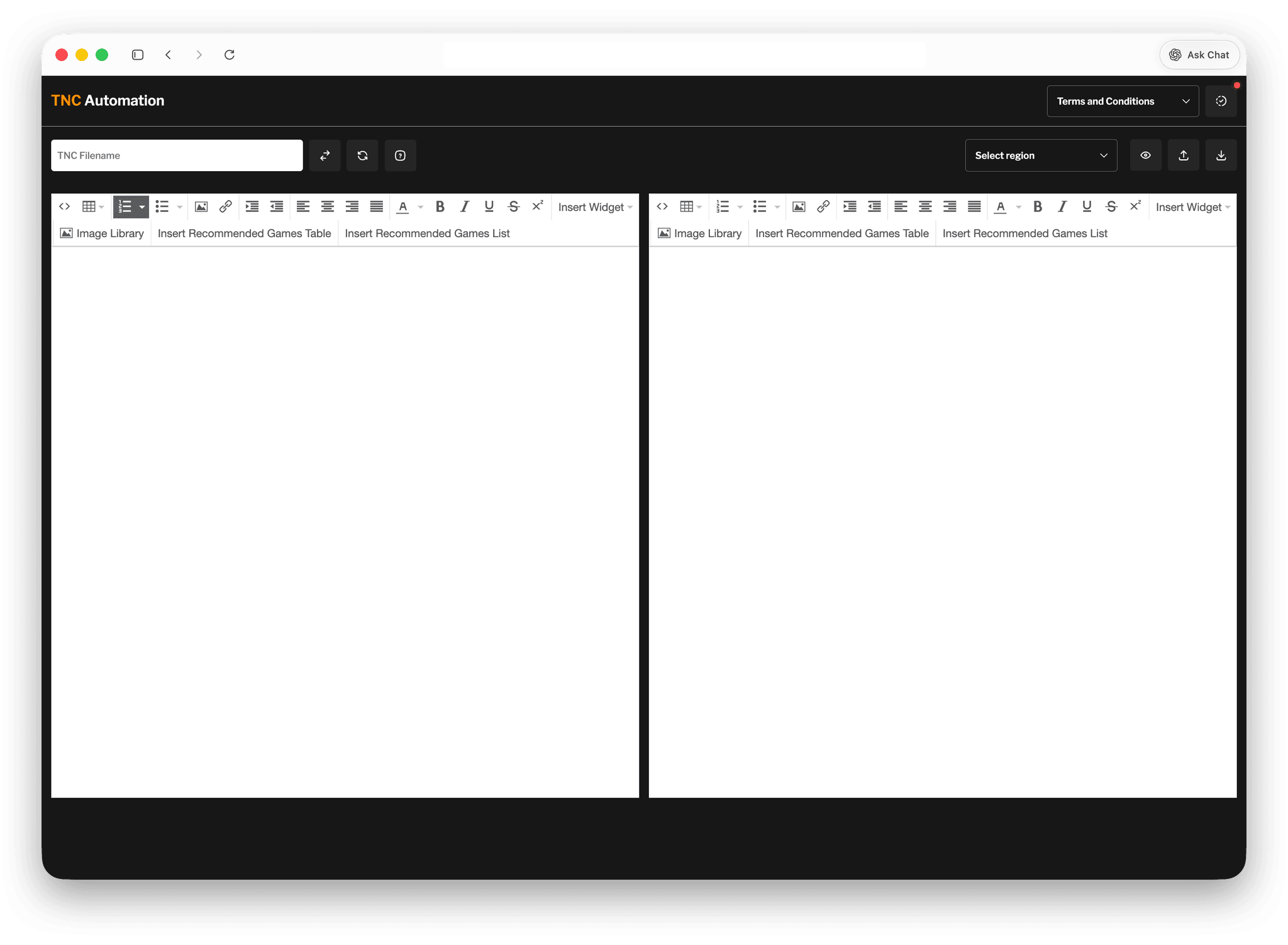

  • Dual Editor Interface
  • Separate editors for English and localized content, improving clarity and navigation
  • Template presets for different regions or campaign types
  • Live preview before export
  • Users can insert pre-defined design components (e.g., tables, formatted sections, or even Vue widget components) without writing HTML
  • HTML Import & Conversion
  • Existing T&C HTML files can be uploaded and converted back into editable content
  • One-Click HTML Export
  • Generates clean, deployment-ready HTML files instantly

Process

Research & Collaboration

I worked closely with both the design team and multiple regional marketing teams to understand their workflow, pain points, and content requirements. This ensured the tool aligned with real-world usage rather than assumptions.

Technical Approach

  • Integrated TinyMCE as the base editor
  • Extended its functionality to support custom components and structured content
  • Built logic to handle HTML parsing and reconstruction for import/export features

Key Decisions

  • Chose JavaScript for accessibility and maintainability, allowing other team members to easily understand or extend the tool
  • Kept the architecture lightweight since it’s an internal tool, prioritizing usability over complexity

Challenges

HTML Import Compatibility - Importing existing HTML files into the editor was inconsistent, especially with older file versions.

Editor Limitations - The WYSIWYG editor automatically stripped out certain code (e.g., Vue and JavaScript), which broke some design components.

Poor Initial UX - The first version used a single editor for both English and localized content, making it difficult to manage and error-prone.

Solutions & Improvements

  • Built a version detection system to identify and convert older HTML formats into a compatible structure
  • Implemented logic to preserve or safely ignore restricted code, preventing output breakage
  • Redesigned the interface into a dual-editor layout, significantly improving usability and reducing mistakes

Results & Impact

  • Reduced T&C creation time from 1–2 hours → 5–10 minutes
  • Eliminated repetitive back-and-forth between marketing and frontend teams
  • Successfully handed over ownership to marketing teams, giving them full control over content
  • Standardized output, reducing formatting errors and improving code consistency
  • The tool is now actively used in production as part of the internal workflow.

Learnings

  • Gained deeper experience in HTML parsing and content transformation (text ↔ HTML)
  • Improved ability to design tools for non-technical users
  • Strengthened collaboration skills—working across teams was critical to building the right solution
  • Learned to balance technical constraints with user experience, especially when working with third-party tools like WYSIWYG editors
